Gym Lockers Unlimited

We created Gym Lockers Unlimited to demonstrate the unlimited options, sizes, styles and colors of supreme, nearly indestructible heavy duty gym lockers available to you. For example, locker doors can be solid without louvers, solid with louvers, solid with full length louvers, mini security vented, expanded metal, visually perforated, diamond shaped perforated, mini diamond perforated and other perforation shapes.
Our Gym lockers are more attractive and durable than ever! Ideal for applications that require a high degree of ventilation and strength, or where visual inspection of locker contents is desired. Doors are made from heavy 14-gauge steel. Sides, tops, bottoms and shelves are 16-gauge steel. Backs are 18-gauge. Doors and sides are perforated with a diamond-shaped pattern allowing maximum air circulation while maintaining security. Solid doors are an option. Our athletic gym lockers come in a variety of styles: single tier, double tier, and triple tier all have standard stainless steel recessed handles and multi-point latching with quiet latch channels. Standard 4, 5, 6, 8 and 9 tier box locker doors have a padlock hasp and a friction catch, and accept built-in combination locks or key locks. Available for extra cost is a spring-loaded catch. Both double tier and triple tier gym lockers have horizontal frame members welded between the doors for added strength and security. 24" wide lockers have full width doors. If slope tops are required, use hoods. All lockers accept built-in locks or padlocks and have rubber bumpers on the latch hooks to reduce noise.

Door Options Available

Your gym locker doors can be diamond perforated, solid, louvered, fully louvered, ventilated with rectangular perforations or mini security vented. Fire extinguisher doors and waste bin doors are other options common in schools. Upgrades abound from heavier gauge doors to standard All-Welded lockers, to rugged welded angle iron framed, to the supreme 3/4” square steel tubular framed and reinforced 14-gauge welded lockers. All of these super heavy duty lockers have been developed for extreme situations where lockers are going to be heavily used and abused.

DOORS: Doors 20" or higher shall be formed from one piece 14-gauge cold rolled sheet steel. Formations shall consist of a full channel shape on the lock side of adequate depth to fully conceal the lock bar, channel formation on the hinge side, and right angle formations across the top and bottom. Doors over 15" wide and over 30" high shall have a 3" wide full height 20-gauge reinforcing pan welded to the inside face of the door on 6" centers. Doors for box lockers 4, 5, 6, 8 and 9 tiers high shall be 14-gauge steel and have channel formations on lock side and hinge side and have right angle flanges on the top and bottom.

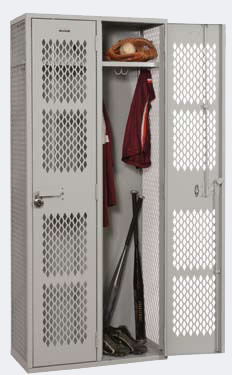

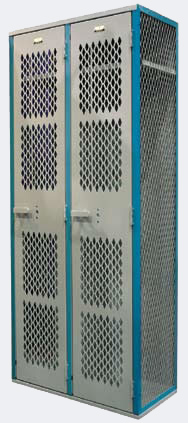

Rugged Welded Angle Iron Framework

Our Angle Iron Locker is built within a 1” x 1” x 1/8” angle iron frame. This 1/8” thick angle iron exoskeleton creates extra strong locker edges and provides a solid framework. Diamond perforated doors and sides offer a high degree of air flow.

Lockers are built in groups with the top, bottom and back panels spanning multiple lockers, which reduces seams and adds rigidity.

Options and Accessories:

Multiple handle/latch types
Continuous slope hoods
Padlocks and built-in locks
Optional 4” high 14-gauge welded base
Optional expanded metal sides
Angle Iron Advantages:
Excellent for athletic applications
Rugged welded angle iron framework
Durable continuous hinge or 3” hinges
Two multi-point latch options on 1 and 2 tier

Diamond Perforations	Ventilated with Perforations	Louvers	Fire Extinguisher	Waste bin door	Mini security vented

Solid Door:

The 16-gauge door front has a solid exterior, aiding quiet operation. In addition to rubber bumpers on all latch hooks, the latch channel is silenced by unique nylon glides. Ventilation is achieved by slots in the top and bottom flanges of the door.

Sound Panel Option
This upgrade has a sound damping panel welded to the door reducing noise levels.

Handle and Latching Types

You can choose secure automatic multi-point latching, or cremone handles and latches, (super strong heavy duty turn handles that feature 3/8" lock bars that engage the top and bottom door frame channels and a 1/8" thick center latch), or single-point latching with welded pan reinforced heavy gauge doors for virtually maintenance-free lockers with no moving parts.

Protruding Die-Cast Handle	Recessed Handle
Pull out handles open multi-point latch lockers with one simple motion. Standard on 1, 2 and 3 tier, two-person and duplex lockers. The patented die-cast protruding handle pulls out with a simple motion for opening. You close the door with one motion of the hand, and the spring-loaded latch clips will secure the door even with a lock engaged.	Our one piece stainless steel recessed handle eliminates protrusions at the locker front and accepts a built-in lock or padlock. Door can be closed with lock engaged. Handle is ADA compliant.

Automatic Multi-point Latching	Recessed Handle Back
Allows the door to be closed without unlocking. Standard on all multi-point doors except box lockers, single-point latch lockers and cremone handle lockers.To reduce noise, the latch channels have unique nylon glides and the latch hooks have noise-reducing rubber bumpers.	Our one piece deep drawn stainless steel recessed handle eliminates protrusions at the locker front and accepts a built-in lock or padlock. Door can be closed with lock engaged.

Single-point Latch	Single-point Latch Hasp
Handle is a deep drawn stainless steel pocket. Used with a vertical or horizontal pan welded to door. Used on single-point lockers of 1 to 3 tier. Choose this option on gym lockers if you want a heavy gauge door offering improved security with the low maintenance inherent in a door with no moving parts.	The steel staple plate is 11-gauge steel welded to the door frame and tubular side support which is also welded to the side. Welded has greater tamper resistance and increased rigidity.	K.D. hasp bracket supports and braces the hasp against the locker side panel for greater tamper resistance.
	Box Locker Doors
	Door Pull — All box lockers come standard with this friction catch door pull handle with padlock hasp.

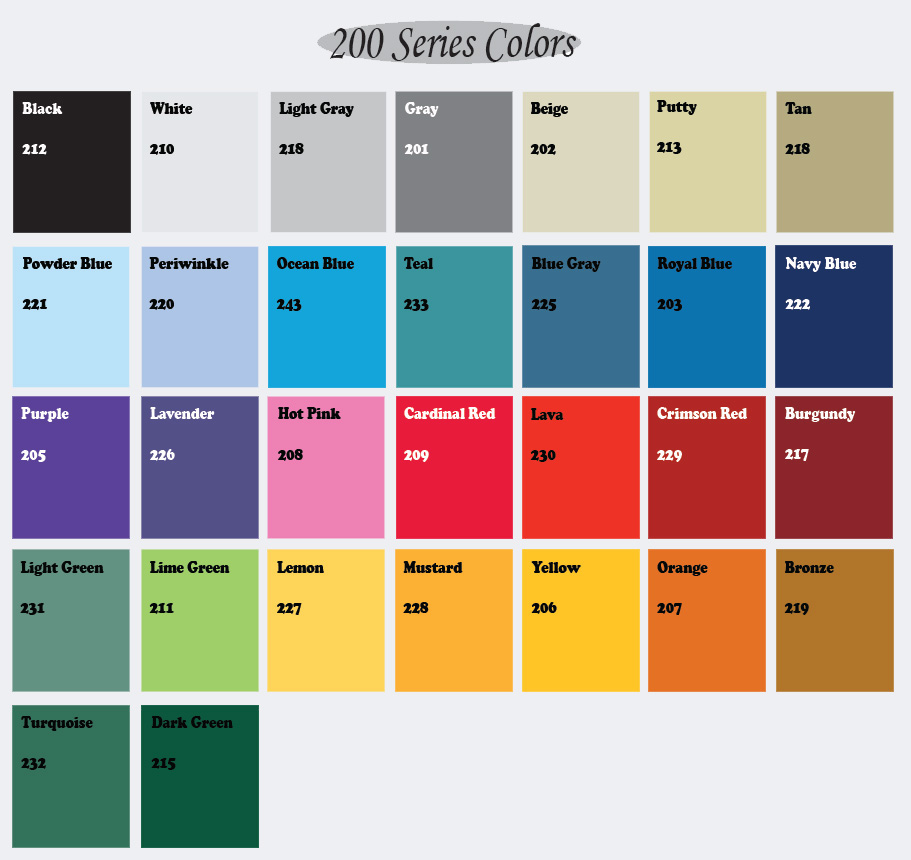

Many Colors To Pick From

Unlimited color choices are available. You can even choose to have your doors one color and your door frames another for the ultimate in school spirit and aesthetic appeal!


Lock Options There are multiple locker lock options available.
Built-in Combination Locks	Combination Padlock
Available with five combination changes for security year to year. Master key controlled. Stainless steel escutcheon plate. Use dead bolt models for all but box lockers, which use spring bolt. Available in LH & RH models for two person and duplex lockers.	Available with and without master key feature. Three number dialing. Rust resistant. Fits box lockers, cremone handle lockers, recessed handle lockers and basket rack lockers.

Built-in Combination Wrap Around Lock for Single-point Latching Lockers "Highly Recommended"

SPL Wrap Around Lock Exclusive Features:

Designed to tolerate locker misalignment making installation easier and less likely to need adjustment over the life of the lock
New latch wraps around a latch plate offering the best and most secure single-point latch engagement
Convenient, automatic slam-shut locking, combined with automatic and secure deadbolt locking
Concealed mounting and rugged steel case
Automatic combination reset once door is shut
Secure, three number combination is easy to dial
Longer useful life with five different combinations – easily changed with the touch of a button, which maintains security for new students or employees
Standard key control allows quick supervisory access
End user registration and control charts provided to secure and simplify administration

NOTE: Lockers will need to be manufactured with proper receiving plate to accept the wrap around SPL lock. You must advise us that you intend to use this wrap around lock when you order your lockers.

ADA Compliant Locks
ADA Key Locks	ADA Touch Button Locks
For doors with resessed handles only, not for single point or cremone handles. Some models have an oversized keyhead to facilitate turning, and some models do not require you to turn the key: just insert key and lift latch pull to open door.	ADA compliant lock that opens by touching a button key to the lock. When opened, an LED light flashes and audio indicator sounds. Lock uses programming key to set user access and a master key for administrative or management use.

Locker Accessories

School gym locker accessories available include continuous sloped tops, continuous inset metal bases, integral channel bases, filler panels, finished end panels, closures and trim panels to complete your perfect school gym or locker room. There are no limits to what we offer when it comes to school gym lockers. Check out the many options available below then give us a call to discuss your custom school gym lockers today!

Unit Slope Tops

Continuous Slope Hoods

Unit slope tops cover the width of one locker frame only. Lockers with unit slope tops have sides with mitered top ends with a rise equal to 1/3 of the locker depth, plus longer backs that meet the rear edge of the slope top. Unit slope tops are used in place of the standard flat tops. Order the appropriate locker plus the proper slope top size. (Not for use on our Athletic Ventilated or All-Welded lockers).

Designed to convert stock flat top lockers into slope top lockers in groups of 3 wide. Each kit contains 3 tops, 3 backs and 4 ends. Not for use on Invincible II or All-Welded lockers.

Continuous Slope Hoods

Continuous slope hoods fit on top of flat top lockers. They can be used on new lockers or on a retrofit basis. All hoods are furnished in 72" lengths and must be cut to length during installation. Intermediate splices, ends and rear supports (two per hood) complete the installation, and must be ordered separately.

Slope tops are often used instead of flat tops to prevent the accumulation of dust and debris and to discourage the use of locker tops as storage areas. There are three different types of slope top construction: Unit Slope Tops, Slope Hoods, and Slope Top Kits. Each is explained below.

Front Bases	End Bases
Front and end bases are designed to fit between lockers with 6" legs. They present a clean flush appearance and prevent the accumulation of dust and dirt under the lockers. (Not for use on All-Welded lockers.)	End bases close the gap between the front leg and the back leg at row end lockers that are exposed. Locker legs and bases elevate lockers allowing for easier access and protect them from moisture and other elements. Locker bases make for easy cleaning and are easy to install.

Continuous Metal "Zee" Bases

Vertical Fillers

Zee bases raise lockers without legs 4" off the floor when there is no concrete or wood base. They provide a toe space in the front and a concealed flange for floor anchoring at the rear. A special 4" high rear leg can be ordered to simplify instal

lation. (6" high zee bases are available also.) Zee bases are available only in 72" lengths, and may need to be cut to fit at the time of installation. Splices/End Bases are used at ends of rows and where the front sections join. (Not for use on welded lockers.)

These come in three widths and are designed to be used in conjunction with wall angle slip joints for a solid fit and smooth finish. The slip joint conceals any raw edges caused by field cutting. See pricing literature for additional sizes

Top Fillers

Top fillers cover gaps between tops of lockers. They overlap the locker tops and can be field cut to allow for pipes, etc. There are separate designs for flat top vs. slope top, and in-line vs. corner applications.

Recess Trim is 3" wide and bridges the gap between lockers and wall and/or soffits when the lockers are recessed into a wall. Side trim for left hand (LH) and right hand sides (RH) are different. Side Trim comes in three types: 1) for use with lockers with no legs, 2) with 6" legs and 3) for use with bottom recess trim.	Extra Locker Shelves can be added to K.D. lockers to meet special user requirements. Most lockers have extra holes already punched into side panels for mounting. In some cases shelf mounting holes may need to be drilled. Please consult your SchoolLockers.com representative for shelf mounting requirements.
