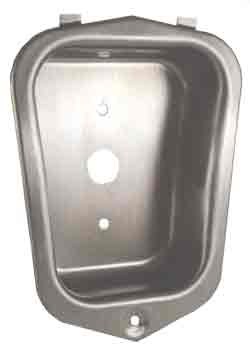

Hallowell Recessed Handle Housing

Replacement recessed handle housing is for use with Hallowell brand lockers.

• Material: Stainless Steel
• Thickness: 1/32"
• Height Outside Lip: 5-13/16"
• Height Inside Cup, at Front: 4-7/16"
• Height Inside Cup, at Back: 4/38"
• Width Outside Edge of Cup, at Top: 4/58"
• Width Outside Edge of Cup, at Bottom: 3-7/8"
• Width Inside Edge of Cup, at Top, at Front: 3-5/8"
• Width Inside Edge of Cup, at Top, at Back: 3-9/16"
• Width Inside Edge of Cup, at Bottom, at Front: 3"
• Width Inside Edge of Cup, at Bottom, at Back: 2-15/16"
• Depth: 1-15/16"
• Depth, Width at Sides Outside Lip: 7/16"
• Depth, Height at Top Outside Lip: 7/16"
• Depth, Height at Bottom Outside Lip: 15/16"
• Depth, Height of Surface of Locker Door when Mounted: 1/8"
• Lift Slot: Small portion, near back, is wider than the rest of the slot (like a 'T') to accommodate the nylon lift shape
• Lift Slot Measurements: 3/8" width at front, 37/64" width at back, 1-3/32 depth (including front and back portions
• Mounting Tabs: Two mounting tabs that come off the top lip horizontally and bend 90 degrees horizontally
• Mounting Tab Measurements: 1/8" depth, 5/16" vertical height, 13/32" width, 1-15/16" distance between tabs
